Powering the analog world

XT018 Medium Voltage Gen 2

X-FAB has developed new 2nd generation medium voltage primitive devices for its leading 180 nm BCD-on-SOI technology platform - XT018. The new NLDMOS devices support operating voltages from 5.5 V to 28 V and offer best-in-class Ron performance.

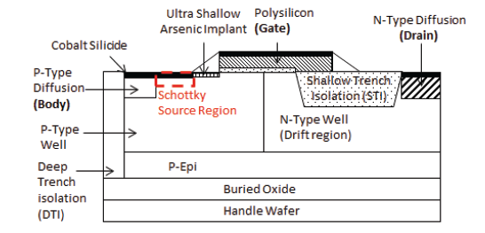

    Cross section of the Hybrid Source LDMOS

    Key features

    • New XT018 MV Gen 2 NMOS devices offer best-in-class Ron performance
    • 30-50% lower Ron compared to XT018 MV Gen 1 devices
    • New ultra-low Ron 5.5V device
    • Supported voltage range: 5.5V to 28V
    • Hybrid Source LDMOS
    • Extended temperature range -40°C to 175°C
    • Improved electrical SOA
    • PDK support with advanced HiSIMHV v2.4.0 – sub circuit models including gate charge and reverse recovery
    • HSPICE, SPECTRE, ELDO simulator supported
    • Device Characterization Report available

    More information about XT018

    180 nm high-voltage modular BCD-on-SOI technology
